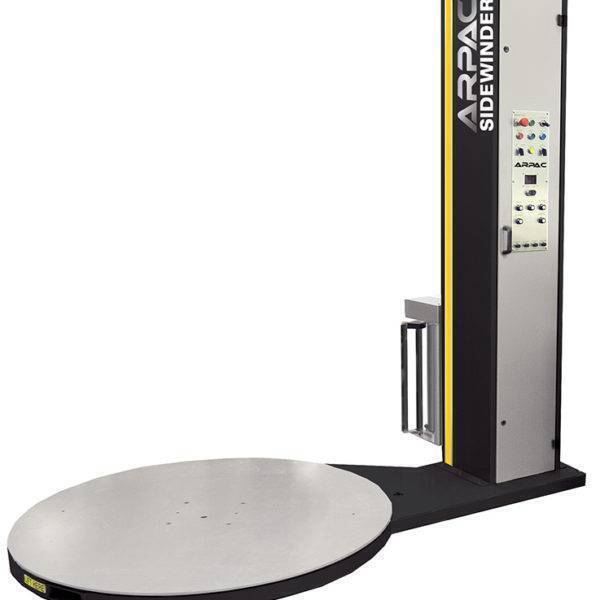

Arpac Sidewinder Powered Pre-Stretch Wrap Machine

The Patriot is an entry level, semi­‐automatic, turntable style wrapping machine. Ideal for low volume production environments, the Patriot can help reduce labor and material costs while improving production efficiencies. The chain driven turntable and carriage and all steel welded construction make it one of the most durable machines on the market. Patriot wrappers come equipped with large 85” diagonal wrap and 4,000lb load capacity, as well as an Allen­‐Bradley® Micrologix PLC. A wide selection of turntable and tower options means the Patriot can be configured to handle high profile and oversized loads. Standard Features Include: • Welded heavy­‐duty reinforced structural steel construction for around­‐the­‐clock operation • Powder coat finish that provides a durable scratch resistant surface and prevents corrosion • 4 point caster support for HP turntable • 8 point ­‐ Delrin caster support for LP turntable • Turntable direct drive: 1/2 HP, 90 VDC motor with ANSI 50 chain • Allen­‐Bradley® Micrologix PLC • UL approved components • External fuses • Top over­‐wrap control feature (TOC) • Cycle pause control • Dual LED wrap counters • Adjustable top and bottom wrap counters (0­‐7) • Home position alignment and turntable jog control • Photo electric load height sensor that detects most dark colored loads • Variable carriage speed (0­‐21 FPM) • Carriage drive: 1/3 HP, 90 VDC motor with ANSI chain drive • Variable stretch control (manual 0­‐100%) ***CALL FOR PRICING***

Arpac’s Performance Level PRO ELITE­‐SERIES is a performance line of powered stretch wrappers with an advanced technology control system. Capable of wrapping 25 to 40 loads per hour, this 4,000 lb. capacity system features an electronic film feed drive, recipe storage, belt carriage lift system, and adjustable top and bottom wrap counts. The forklift portable 60” round turntable for loads up to 52” x 52”, has a rotation speed of up to 15 RPM. The PRO ELITE­‐SERIES is built to last with a heavy­‐duty formed steel construction for years of reliable wrapping. Low to no maintenance and quiet operation, and easy to troubleshoot, the PRO ELITE­‐SERIES features controlled settings to ensure the right people have access to the easy to use controls. Machine Features:

• 5.7” Easy to Use Color HMI
• Electronic Film Feed Drive
• Belt Carriage Lift System
• Unique Carriage Slide System
• Adjustable Top and Bottom Wrap Counts
• Automatic Load Height Sensing
• 3 Wrap Modes - Bottom Wraps First - Top Wraps First - One Way Wrap(bottom to top)
• 10 Storable Load Recipes
• Separate Up/Down Carriage Speeds
• Electronic Film Tension Control
• Security Access to Machine Settings
• 0 to 15 RPM Turntable Speeds
• 0 to 21 RPM Carriage Speeds
• 120 VAC
• 4000 Lbs Load Capacity
• Cycle Counter
• Dual Anti Stat Pre Stretch Rollers
• Eco-friendly, durable, powder coating
• Manual Jog Features for Turntable and Carriage
• Auto Home Button for Turntable
• Fault Indicator with Resolution Tips
• LED Lighted Control Panel
• 150% to 300% Pre Stretch Available
• Available in High and Low Profile Turntables
• Many Many Options

Benefits:

• Low to No Maintenance
• Quiet Operation
• Arpac “Built to Last”
• Recipe Storage
• Easy to Use Controls
• Easy to Troubleshoot
  • Fault Resolution on Screen
• Easy Film Loading
  • Close Carriage Door and Film is Threaded
• Security Controlled Settings
  • Right People have Access to Wrap Settings
• Capable of 25 to 40 Loads per Hour
• Lifetime Limited Warranty on Pre Stretch Rollers
• UL/CSA Approved Components

***CALL FOR PRICING ***

Arpac’s PRO­‐SERIES® is part of a robust line of stretch wrapping equipment designed to maximize stretch film usage while ensuring the very best load unitization. This 4,000lb. capacity system is available with a high profile turntable for forklift loading, or a low profile turntable for pallet­‐jack loading. Heavy­‐duty, reinforced structural steel construction guarantees years of reliable wrapping. The PRO­‐SERIES® can be customized to suit your material handling requirements with extended towers for taller loads and split frames for odd­‐sized larger loads, and is often purchased with the WRAP­‐N­‐WEIGH® feature to combine wrapping and weighing operations. Standard Features Include: • Welded heavy­‐duty reinforced structural steel construction for around­‐the­‐clock operation • Powder coat finish that provides a durable scratch resistant surface and prevents corrosion • 4 point caster support for HP turntable • 6 pairs ­‐ Delrin caster support for LP turntable • Turntable direct drive: 1/2 HP, 90 VDC motor with ANSI 50 chain • Micro controller logic • Top over­‐wrap control feature (TOC) • Cycle pause control • Turntable jog control • Carriage pause control (banding) • Adjustable dual LED wrap counters (0­‐7) • Corner compensation • Anti­‐static rollers • UL approved components • External fuses • Positive home position alignment • Photo electric load height sensor that detects most dark colored loads • EZ­‐LOAD Powered Pre­‐Stretch 150­‐300%, 200% Standard • Variable carriage speed (0­‐21 FPM) • Turntable speed of 0­‐12 RPM adjustable • Carriage drive: 1/3 HP, 90 VDC motor with ANSI chain lift drive ***CALL FOR PRICING***

Arpac’s ELECTRO­‐WRAP Rotary Tower pallet wrapper is a robust stretch wrapping machine capable of wrapping up to 40 loads per hour. Built to last with heavy­‐duty, welded steel construction and is manufactured and supported to offer trouble-free operation, the ELECTRO­‐WRAP series accommodates 20” and 30” film rolls, and features an EZ­‐Load film delivery system, anti­‐static film rollers, and photoelectric load height sensing. Mode of Operation: The pallet load is positioned under the rotary arm of the ARPAC Electro-­‐Wrap stretch wrapping machine. The film is automatically attached to the pallet load to begin the stretch wrapping cycle. The rotary arm then moves around the stationary load while the EZ­‐LOAD® film pre­‐stretch module stretches the film from 150 to 300% (200% standard).

Machine Features:

• Flashing safety beacon
• Adjustable top and bottom illuminated LED wrap counters
• Magnetic proximity switches in place of mechanical limit switches
• Top film overwrap control feature (TOC)
• Electronic film tension adjustment control on the control panel
• Long-range photo eye for automatic load height sensing
• User-friendly push-button operator control panel
• Built-in self-diagnostics
• Positive home position alignment

System Components:

• Heavy-duty, welded steel construction (no plastic panels) designed for long life
• Eco-friendly, durable powder coating
• Up to 15 RPM rotating arm can deliver 25–45 loads per hour
• Dual V-belt drive rotating arm
• NEMA 3 commutator

Film Delivery System:

• EZ-Load® film pre-stretch dispenser for 20" film rolls
• Dual anti-static film rollers with manufacturer’s lifetime warranty
• Film pre-stretch capability from 150 to 300% stretch (200% standard)
• Variable carriage speed up to 21 FPM
• Belt lift for quiet operation
• Dancer bar variable corner compensation
• Electronic film tension adjustment control

***CALL FOR PRICING***
